Scan Diagnostics:

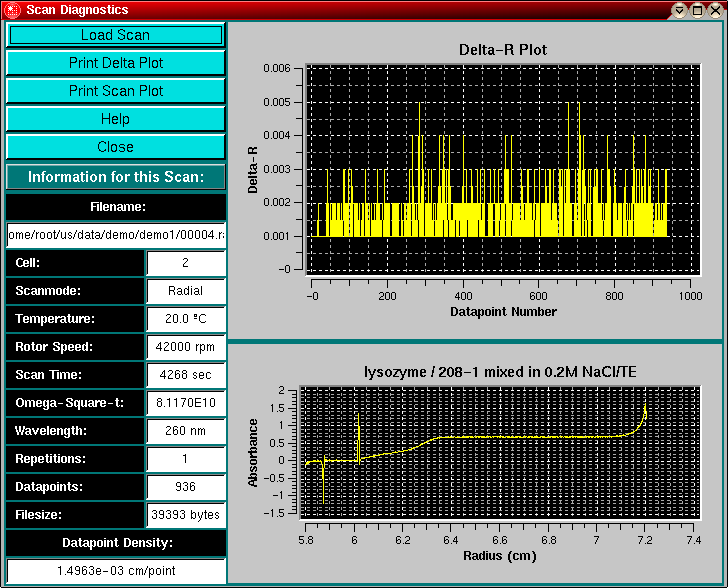

The scan diagnostics utility can be invoked by clicking on the "Diagnostics" entry in the Utility Menu from the Main Menu of UltraScan. The purpose of this module is to present the parameters and contents of a scanfile in a graphical way. In absorbance scans, radial scans are measured with varying radial increments. Since the radial increments are not constant, this module will show the radial increments as delta-r plots. In addition, all parameters are extracted from the file header and shown.

Explanation of buttons and fields:

Buttons:

Load Scan
Select a scan file from your data directory. Valid files are velocity, equilibrium, absorbance and interference scans. Invalid files are automatically detected and will not load.

Print Delta Plot
Create postscript file or a printout of the delta-r plot.

Print Scan Plot
Create postscript file or a printout of the scan plot.

Help
Call up this help file.

Close
Quit the Scan Diagnostics module

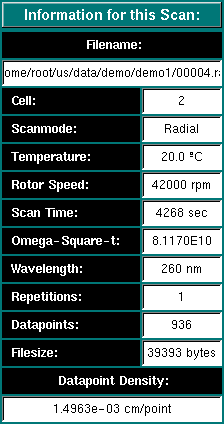

Fields:

Filename
The name of the selected file.

Cell
The cell position that the scan was taken in the original run. This may be different from the file name extension if the data was collected with the older UltraScan software which could renumber the scans under certain conditions.

Scanmode
Choices are "Radial" (R), "Interference" (P), "Incidence" (I) or "Wavelength" (W).

Temperature
Temperature in ^oC.

Rotor Speed
The rotor speed in rpm.

Scan Time
Time of scan in seconds measured from start of run.

Omega²-t
The total force on the rotor measured in Omega²-t at the time of the scan.

Wavelength
The wavelength in nm.

Repetitions
The number of repetitions measure for each datapoint.

Datapoints
The number of datapoints in the scan file.

Filesize
The size of the datafile in bytes.

Datapoint Density
The average density of datapoints per centimeter.

www contact: Borries Demeler

The latest version of this document can always be found at:

http://www.ultrascan.uthscsa.edu

Last modified on January 12, 2003
